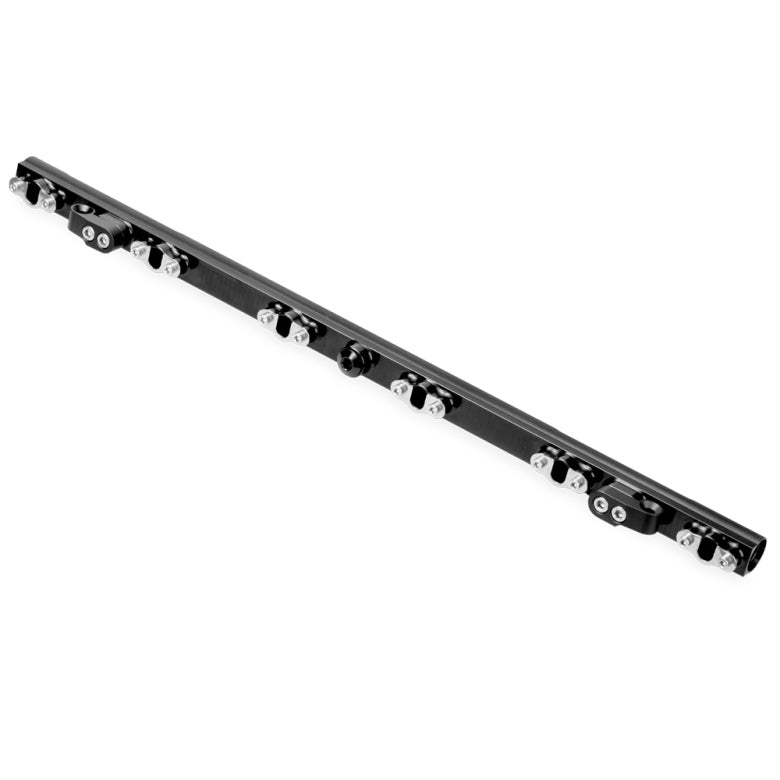

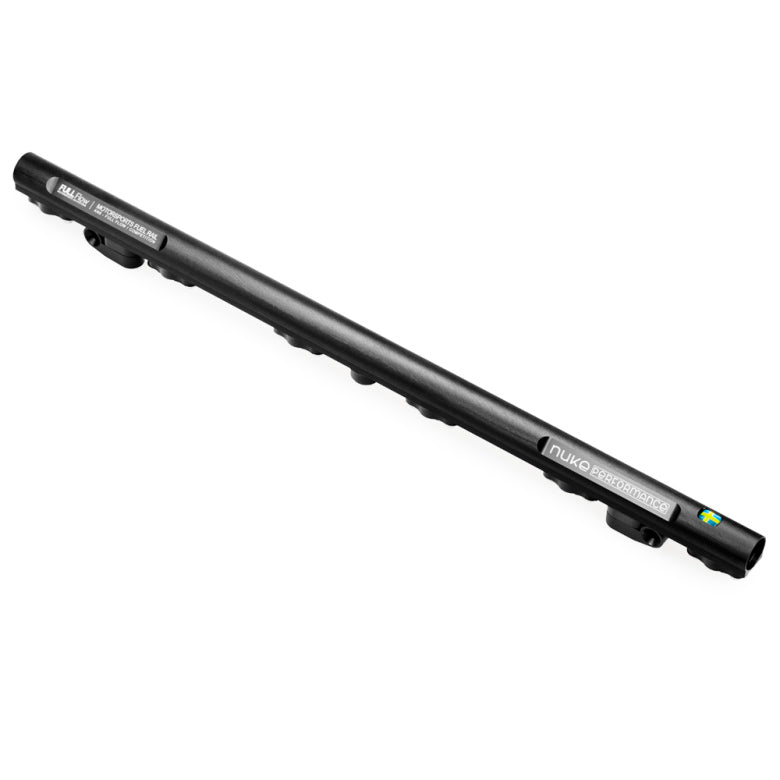

Nuke Performance fuel rail for the BMW 4cyl M42 engine, oversized internals, lightweight design, and equipped with our unique injector safety clips.
The BMW 4cyl M42 fuel rail is delivered without model-adapted brackets but with M6 threads for custom bracket manufacturing and installation. The aftermarket fuel rail for the M42 engine allows you to install AN fuel lines and aftermarket injectors for your classic 4cyl BMW engine.
- Lightweight fuel rail that fits BMW 4cyl M42 engines
- To be used with Bosch EV14 type injectors
- AN-8 ORB threads in both ends enable a high fuel flow
- Delivered without brackets - custom brackets need to be made
- AN-6 ORB side outlet/inlet for optional applications
- Safe for all types of fuels, including alcoholic fuels such as E85

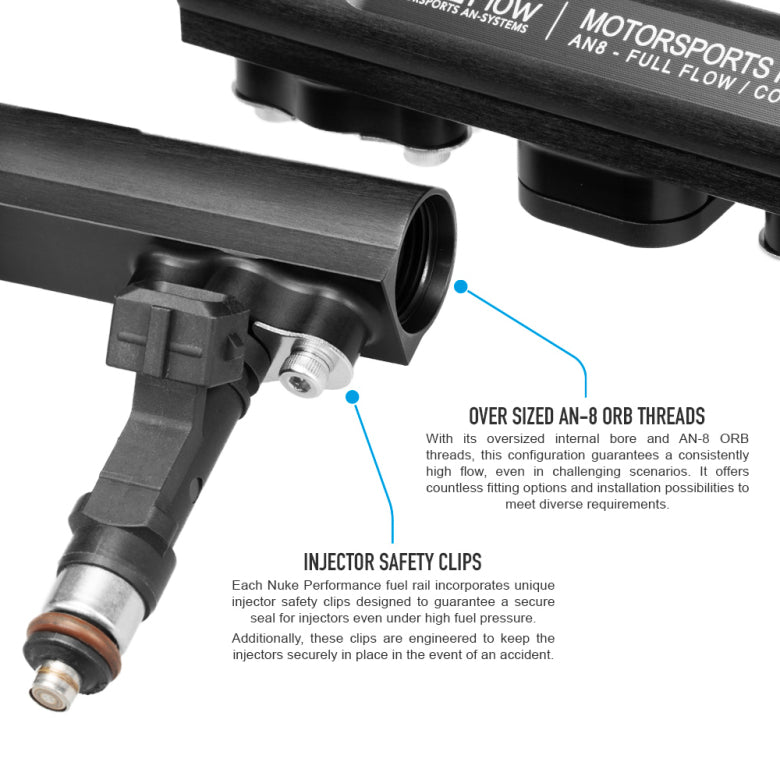

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold. For the BMW M42 engine, we do not provide you with the needed brackets for your installation, custom brackets need to be manufactured by the installer, and the fuel rail is equipped with two mounting points with M6 threads.
Model-adapted fuel rail, delivered without mounting brackets.
The Nuke Performance BMW 4cyl M42 fuel rail is delivered without the needed brackets which have to be custom-made when installation is performed.
BMW M42B18 1989-1996
Nuke Performance BMW 4cyl M42 fuel rail Specifications:
Delivered with brackets for Delivered without brackets
Injector type specification Bosch EV14 style
End inlet/outlet threads AN-8 ORB (view assortment) *
Additional port thread AN-6 ORB (view assortment) *
Length 318.00mm (12.52")
Height 32.00mm (1.26")
Weight 295.00g (10.40oz)
Fuel compatibility Petrol, Gasoline, Ethanol, E85, E100, Methanol
For motorsports use YES
* not included, make sure to select the needed fittings when placing an order
** old generation fuel rail with different design and thread sizes
Nuke Performance BMW 4cyl M42 fuel rail includes:
1 x AN-6 ORB Plug
4 x Nuke Performance Injector safety clips
8 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
Side outlet fittings purchased separately.
