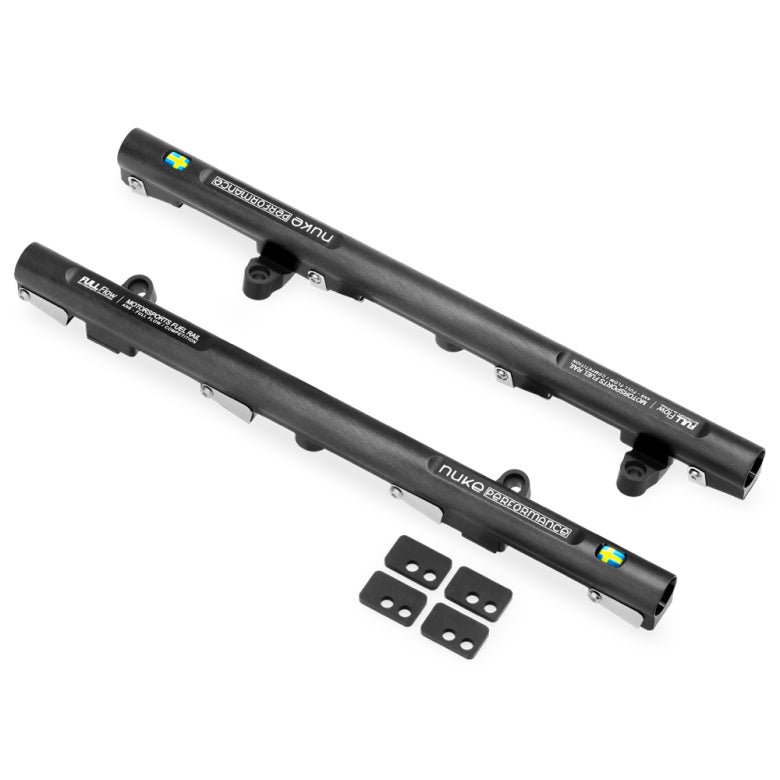

GM 8cyl LS1, LS2, LS3, LS6, L76, L99 fuel rail

Nuke Performance fuel rails for GM LS1, LS2, LS3, LS6, LS7, L76, and L99 V8 engines, oversized internals, lightweight design, and equipped with our unique injector safety clips.

The GM 8cyl LS1, LS2, LS3, LS6, L76, L99 fuel rails is delivered with brackets for the different LS engines and allow you to use AN fuel lines and aftermarket injectors for your iconic V8 engine.

•  Lightweight fuel rail that fits LS V8 intakes
•  To be used with Bosch 14mm injectors
•  AN-8 ORB threads in all ends enable a high fuel flow
•  Delivered with brackets for easy mount to the different LS intakes
•  AN-6 ORB side outlet/inlet for optional applications
•  Safe for all types of fuels, including alcoholic fuels such as E85

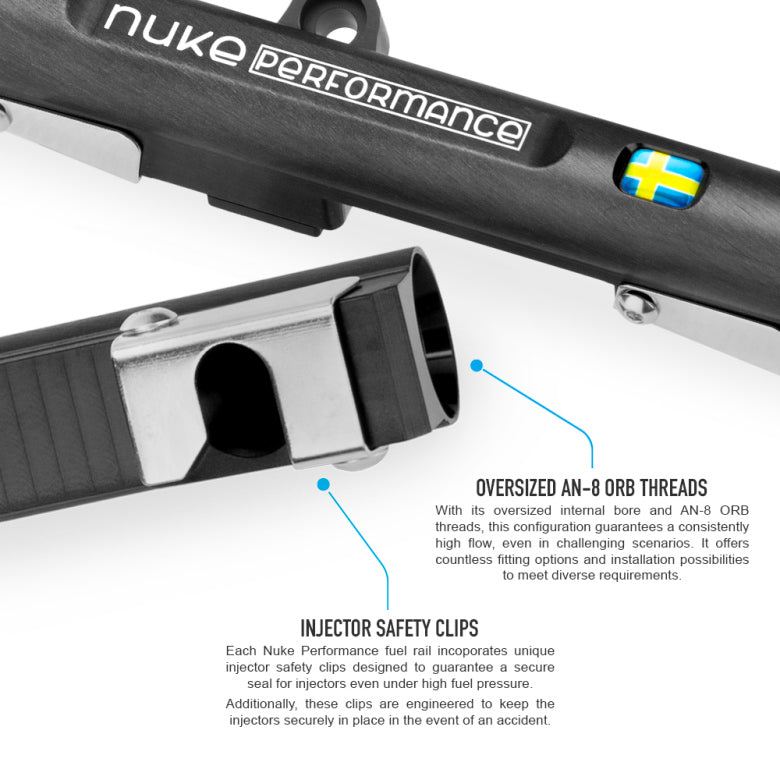

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

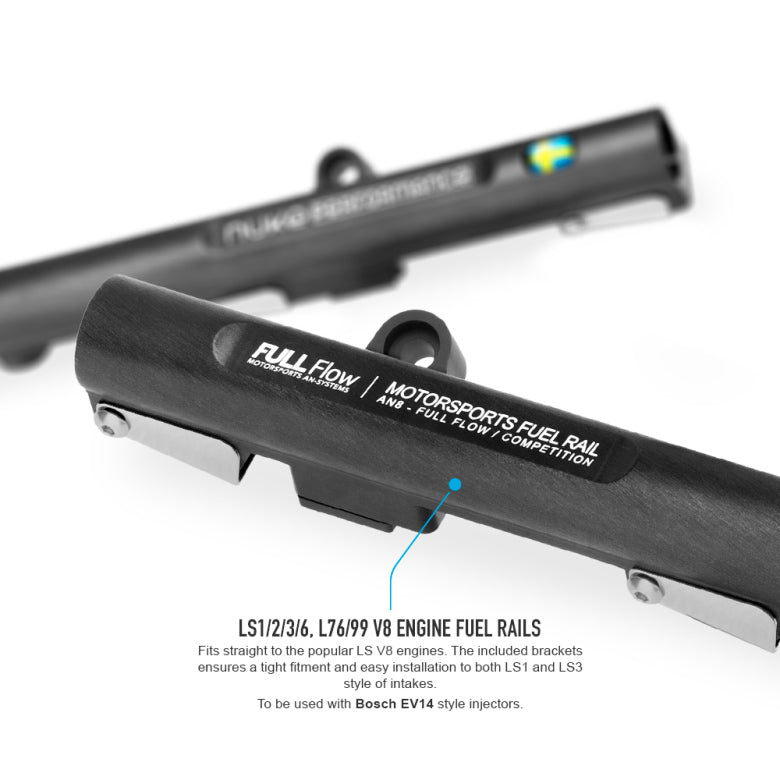

 Perfect fitment for GM 8cyl LS1, LS2, LS3, LS6, L76, and L99 engines, delivered with the needed hardware to mount to the intake.
The Nuke Performance GM 8cyl LS1, LS2, LS3, LS6, L76, L99 fuel rails is delivered with brackets for the different LS engine and is designed to be used together with Bosch 14mm injectors.
 GM LS1 type intakes - uses EV14L 65mm injectors
 GM LS3 type intakes - uses EV14K 38mm injectors

The LS1 intake setup is design for use with Bosch EV14L (Long) 65mm style injectors, and the LS3 intake setup is designed for Bosch EV14K (Compact) 37.95mm style injectors. The different intakes demand different mounting points and the fuel rails come with the needed hardware for both style intakes. For more information, read the product manual for installation guidance.

Nuke Performance LS1, LS2, LS3, LS6, L76, L99 fuel rail Specifications:
For more information about specifications, view the product sheet.

* not included, make sure to select the needed fittings when placing an order
** depending on intake version, EV14L for LS1 type, EV14K for LS3 type
*** old generation that is no longer available for purchase

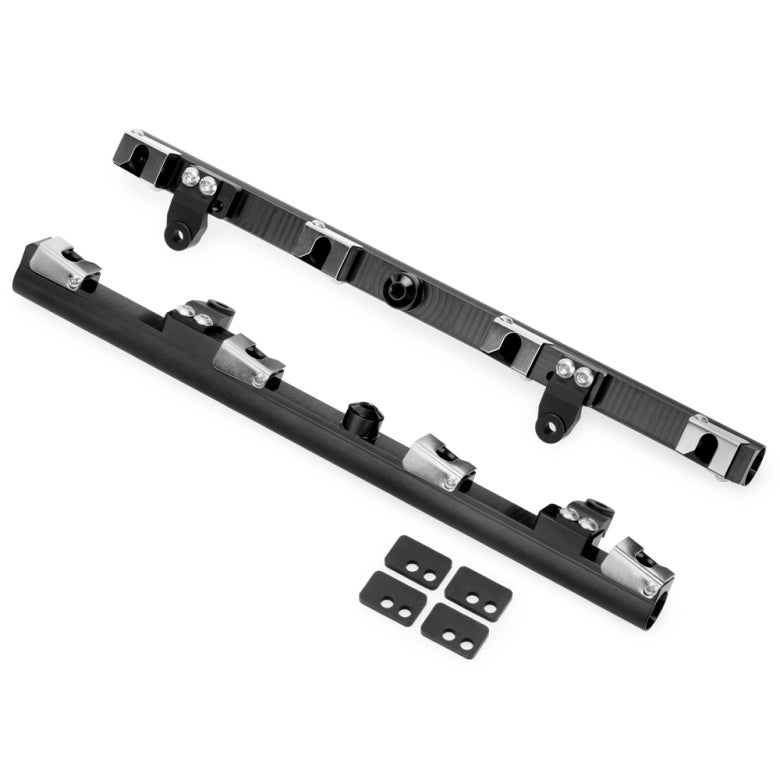

 Nuke Performance LS1, LS2, LS3, LS6, L76, L99 fuel rail includes:
2 x AN-8 ORB Full Flow fuel rail profile for GM LS V8 engines
4 x Aluminum brackets for GM LS V8 engines
4 x Bracket adapters for GM LS1 type intakes *
2 x AN-6 ORB Plug
8 x Nuke Performance Injector safety clips
16 x K6S M4x6mm stainless steel bolts
8 x K6S M6x12mm stainless steel bolts *
8 x K6S M6x8mm stainless steel bolts *

* Refer to the instruction manual to determine which parts are required for each type of intake.

 Download Product Sheet (.pdf)
 Download Installation Manual (.pdf)
