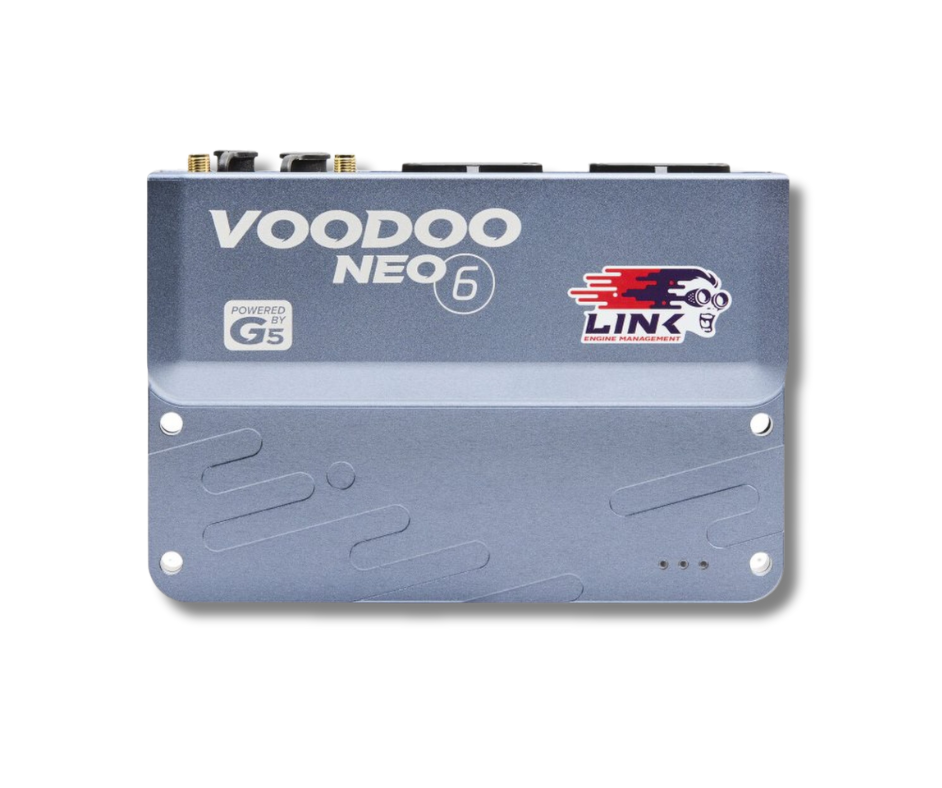

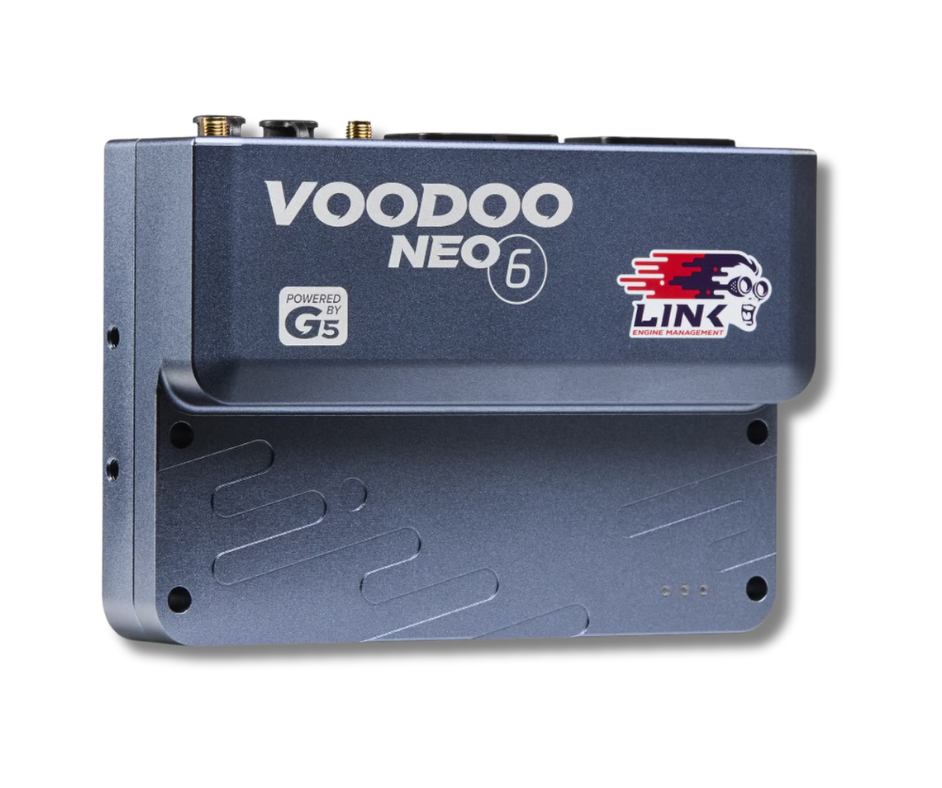

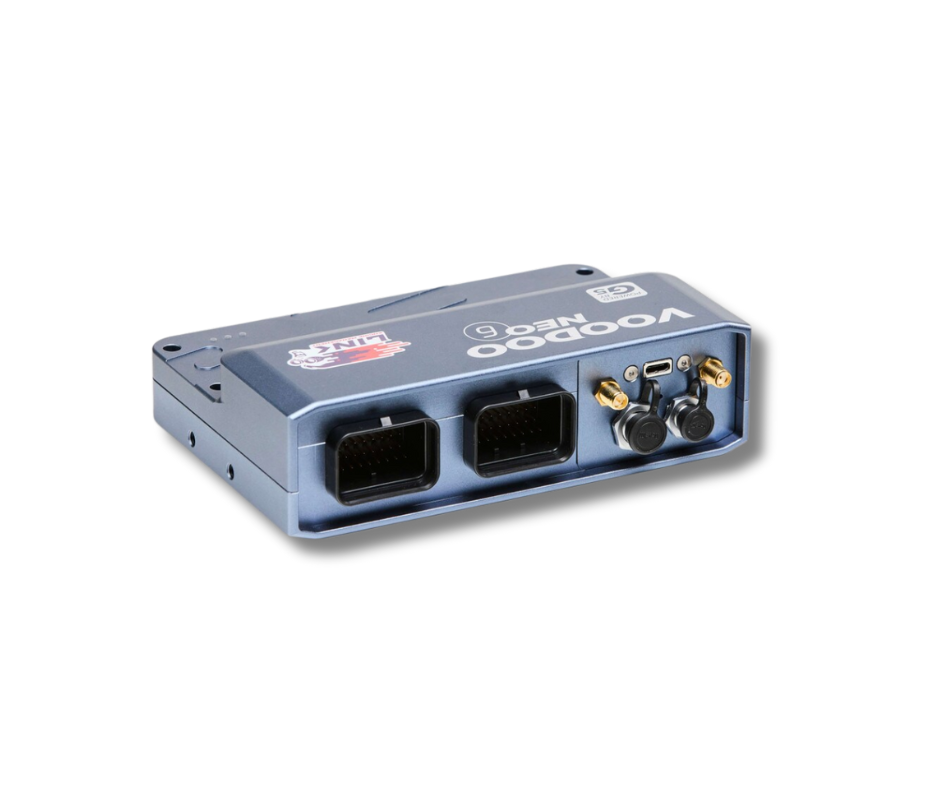

Link ECU G5 Voodoo Neo 6

• An all new communications module: 10x faster USB speeds (from minutes down to seconds to download log files), Ethernet, and enhanced WiFi and GPS.
• 1GB onboard of logging memory, double that of other Link ECUs.
• Highly customisable IO, using 2 types of multi purpose pins: Injection/Ignition/Aux pins and dual-purpose ADIO pins.
• Dual on-board E-throttle, with H-bridges that now natively support things like modern e-wastegates or e-blow off valves
• 1 onboard wideband
• Configurable Analogue Temp inputs, with two different pull up resistor values (1kΩ and 10 kΩ) , allowing more types of sensors to be used
• Analogue Temp pull-ups can be disabled now, allowing Analogue Temps to be used as regular Analogue Volt inputs.
• K-line support.
• CNC Case, Sealed enclosure

Specifications

Outputs

• Injection Drives                  12
• Ignition Drives                   8
• Auxiliary Outputs               2-24*
• ADIO (Aux/An Volt) pins    6
• +5V Sensor Power Supply  Yes
  * Number of Auxiliaries depends on number of unused Inj/Ign drives available.

Inputs

• Digital Inputs              6-10*
• Temperature Inputs    4
• Analogue Inputs         3-13*
• Trigger Inputs             2
• Knock Inputs              2 Channel
  *G5 Voodoo Neo share certain Inj/Ign/Aux pins as additional Digital Inputs
  *G5 Voodoo Neo ECU's introduce ADIO pins, which can be used as Aux outputs, or An Volt inputs

Communications

•  CAN Bus    2 Channel
• Wi-Fi         Yes
• Ethernet    Yes
• USB Tuning Connection    USB-C

Data Logging

• Onboard Logging Memory        1 GB
• Maximum Total Logging Rate    100 khz
• Logging Channels                      250

Other Features

• GPS                                                                       Yes
• E-throttle Control (Custom H-Bridge)                  Dual
• Open or Closed Loop Boost Control                    Both
• Lambda Sensor Control (Onboard Wideband)    Single
