he 2nd generation Fuel Surge Tanks from Nuke Performance, with everything you need to mount the popular Ti Automotive GST400 / GST450 / GST520 high-pressure fuel pumps.
This new updated version is the first of its kind specially developed and designed to mount a single or dual setup of Ti Automotive / Walbro GST400, GST450, and GST520, the Walbro motorsport fuel pumps that outperformance all current in-tank fuel pumps in its price range.
- An extremely lightweight motorsports surge tank
- Fits a single or dual high-pressure fuel pump
- Combined into a single AN-10 ORB outlet
- 3.0 liter surge tank capacity
- Made in Sweden
- 100% Safe for all types of fuels, including E85
- Now with ORB threads, for a wider range of fittings

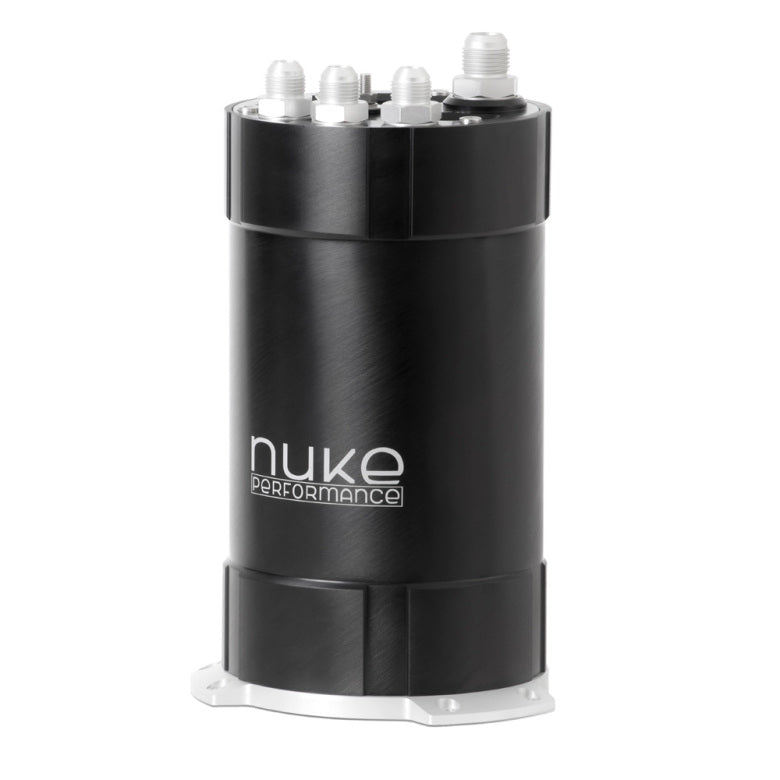

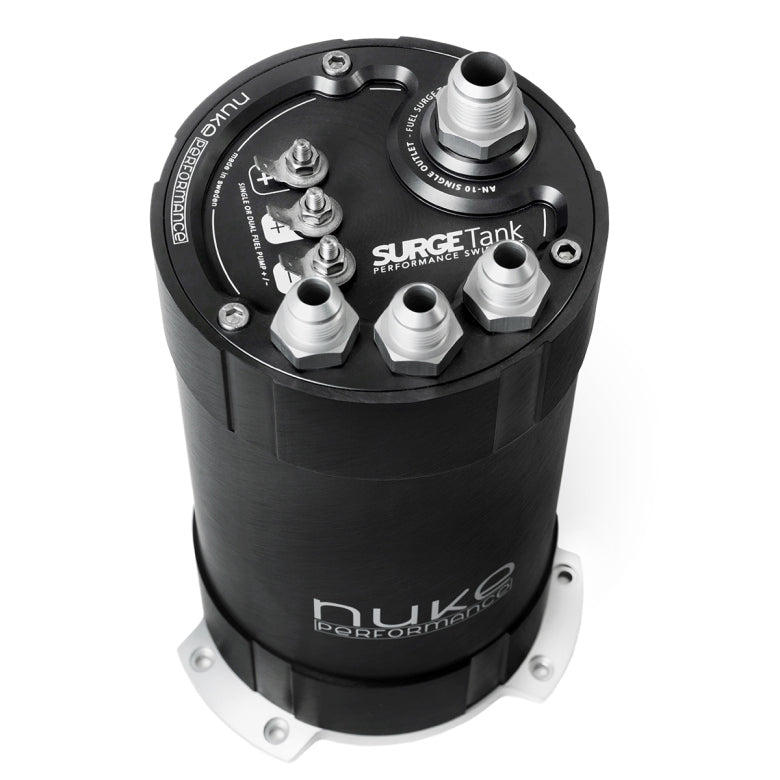

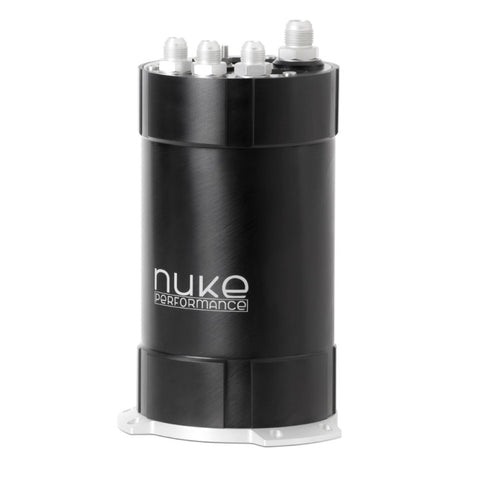

The Nuke Performance 2G Fuel Surge Tank 3.0 liter for Ti Automotive (Walbro) GST 450 / 520 lets you combine two internal fuel pumps into one AN-10 outlet. This Fuel Surge Tank is able to deliver steady fuel flow even over 2000hp. This setup is everything you need to be combined into a space-efficient and power-efficient solution and design.

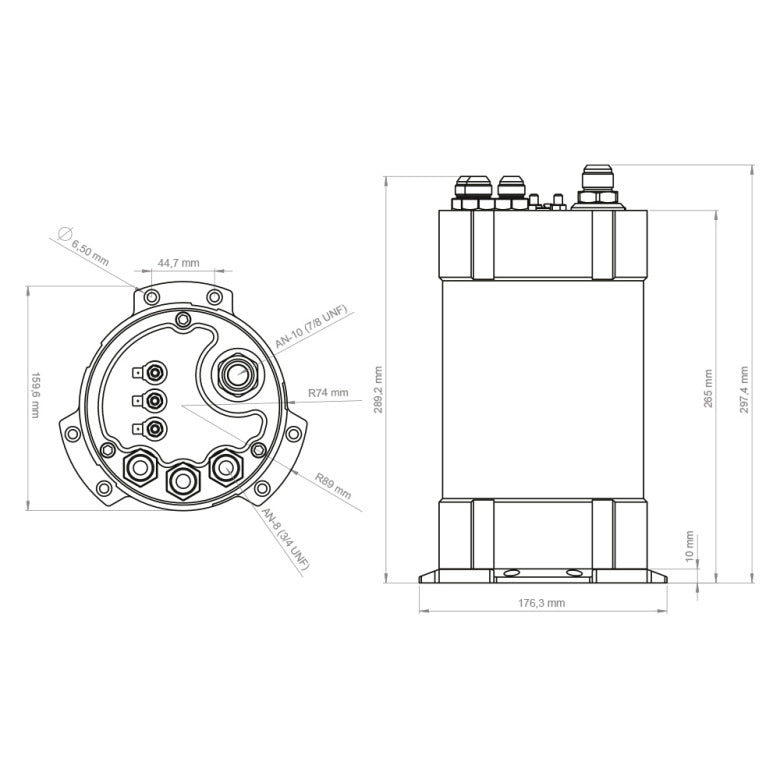

Fuel Surge Tank Specifications
| Part # | 150-01-208 |
| Length | 265mm (10.43”) |
| FST diameter | Ø 148mm (5.82”) |
| Bracket diameter | Ø 178mm (7.00”) |
| Mounting points | 6 x M6 (Ø 6.5 mm / 0.25") |
| Surge tank volume | Approximately 3.0 liter (0.79 gallons) |
| Weight | 2780g (6.12lb) |
| Fits number of high-pressure pumps | 1-2 x brushed fuel pump |

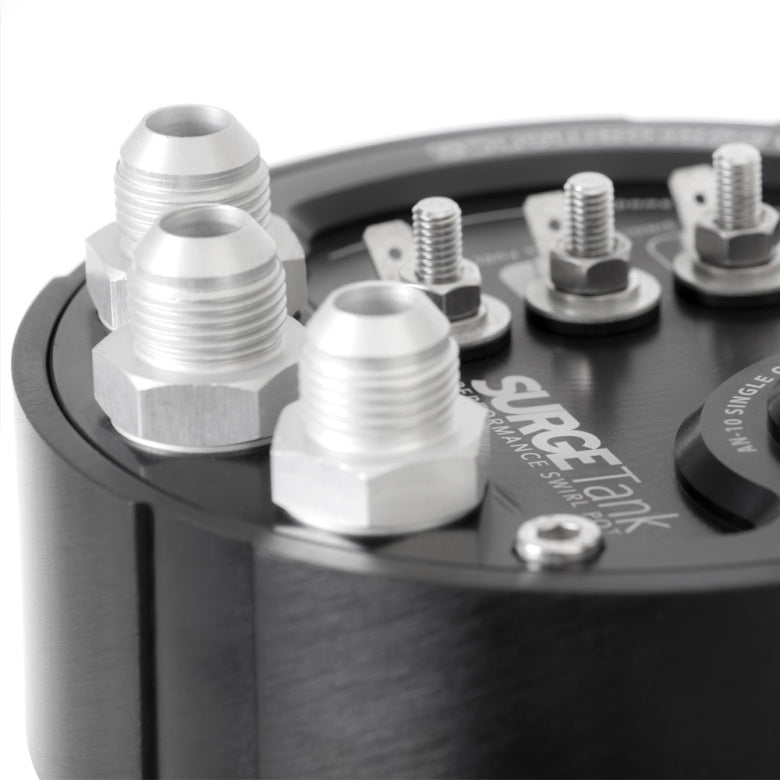

| Outlet thread | AN-10 ORB ** |
| Inlet thread | AN-8 ORB ** |
| Return thread | AN-8 ORB ** |
| Return to the fuel tank | AN-8 ORB ** |

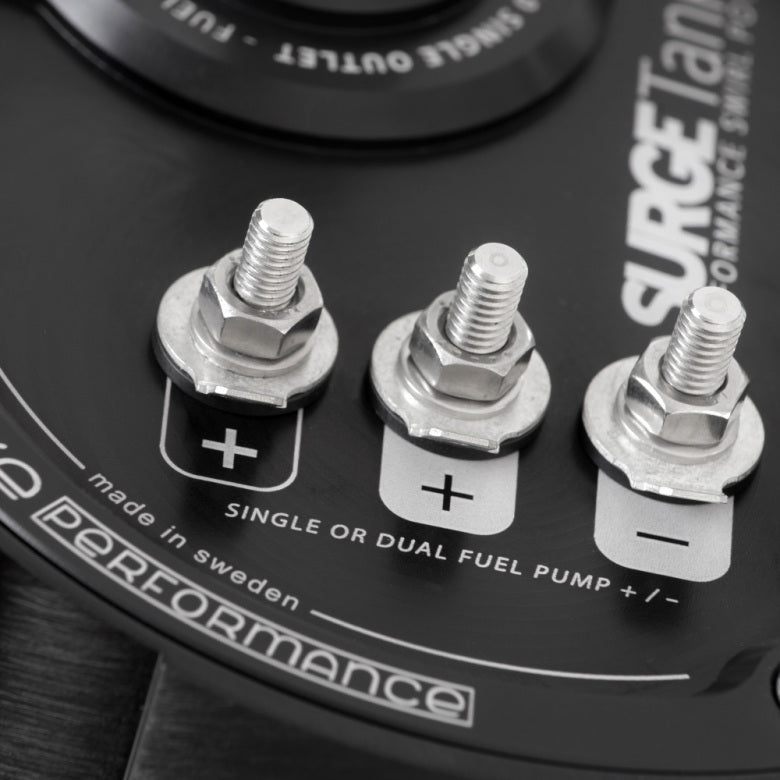

| Electrical connector | x3 M6, (max ≈125 ampere / each *) |
| Fuel compatibility | Gasoline, Methanol, Ethanol, E85 |
| For motorsport use | YES |
| EAN | 7340209501278 |
* for reference only
** changed specification 2022
Walbro GST Fuel Surge Tank Includes:
1 x 3.0 liter fuel surge tank

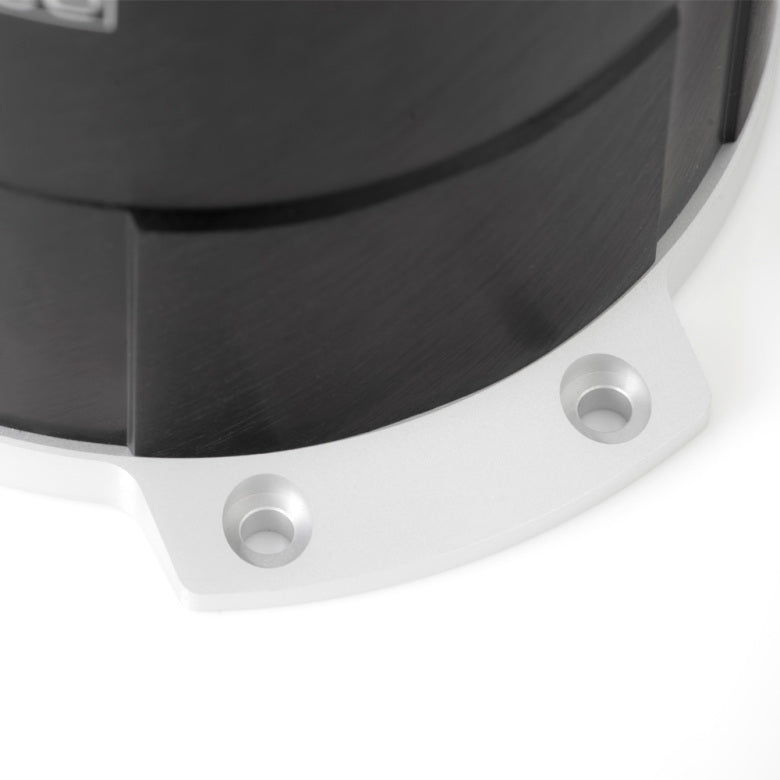

1 x 6 bolt pattern aluminum mounting bracket

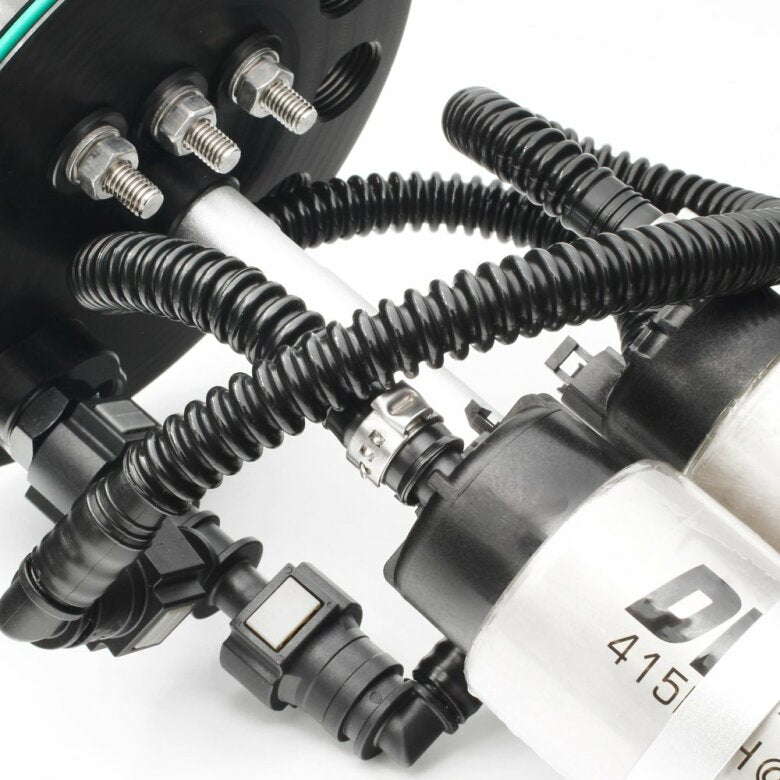

1 x Dual mounting bracket for internal fuel pumps
2 x 39mm fuel pump inserts for Walbro GST fuel pumps
2 x 1/4 BSPP to 8mm Barb (fuel hose) fitting
1 x 1/4 BSPP Plug (for single fuel pump use)
